Mindfield eSense SDK for developing custom Windows software

Who is this SDK for?

For Windows developers building biofeedback and neurofeedback applications in C# / .NET – from practice software to research tools to coaching platforms. You get direct access to the calibrated data streams of all eSense sensors in a single library.

What’s included

Native Windows SDK for the complete eSense sensor family:

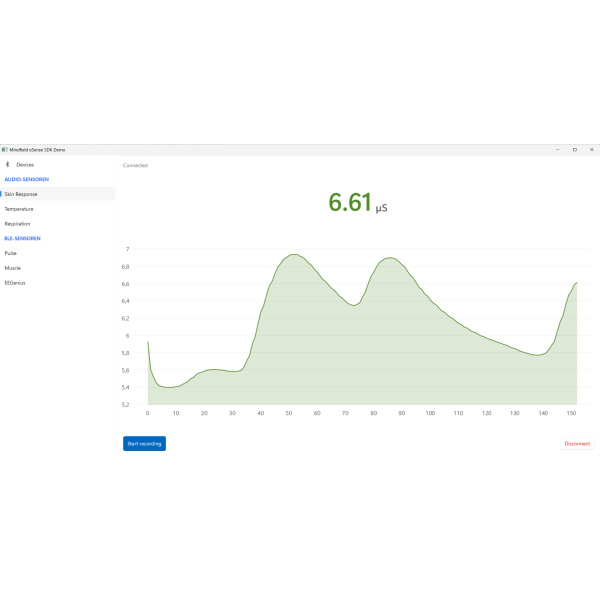

• eSense Skin Response — electrodermal activity (EDA / GSR) in microsiemens (µS), audio

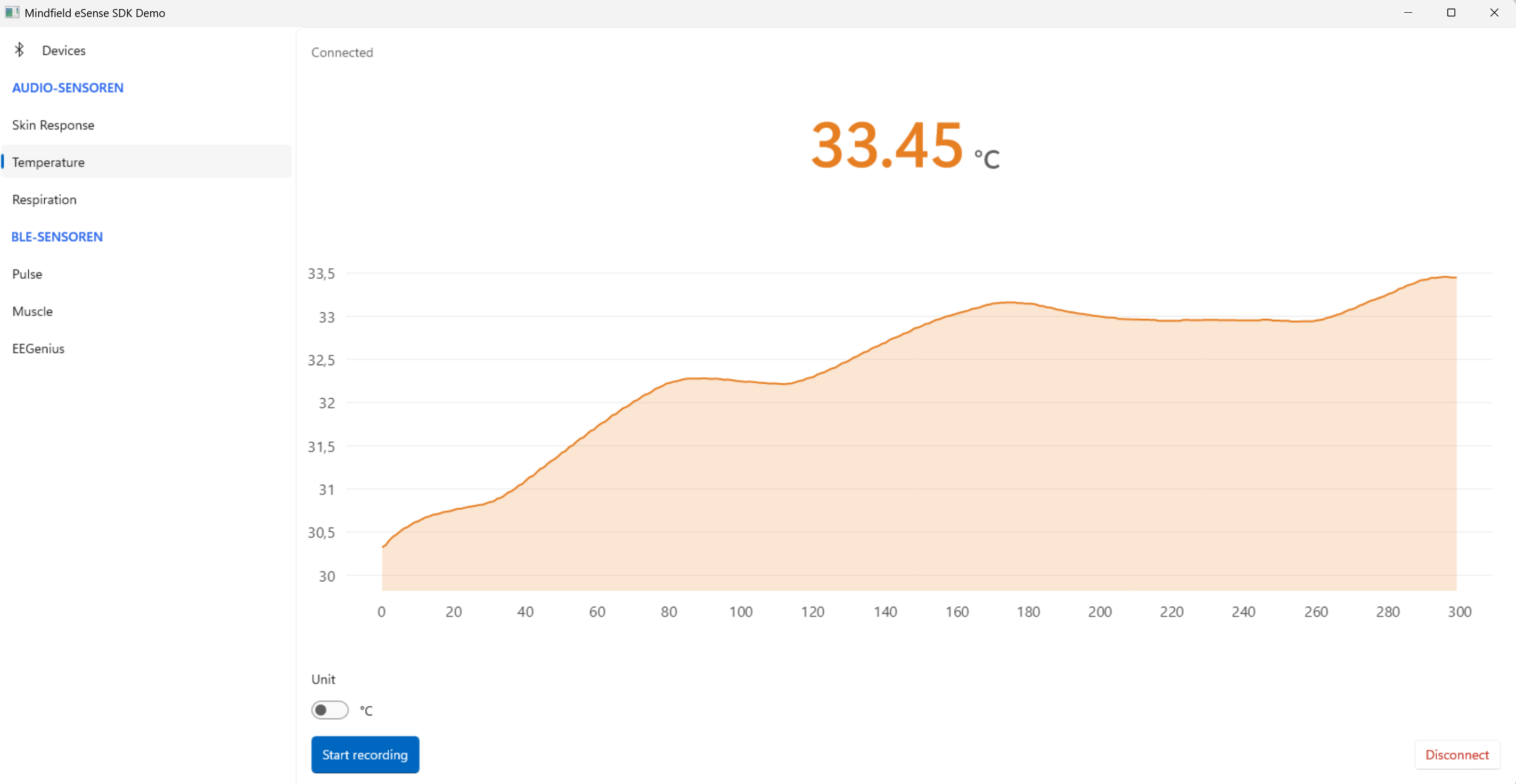

• eSense Temperature — skin temperature in °C / °F, audio

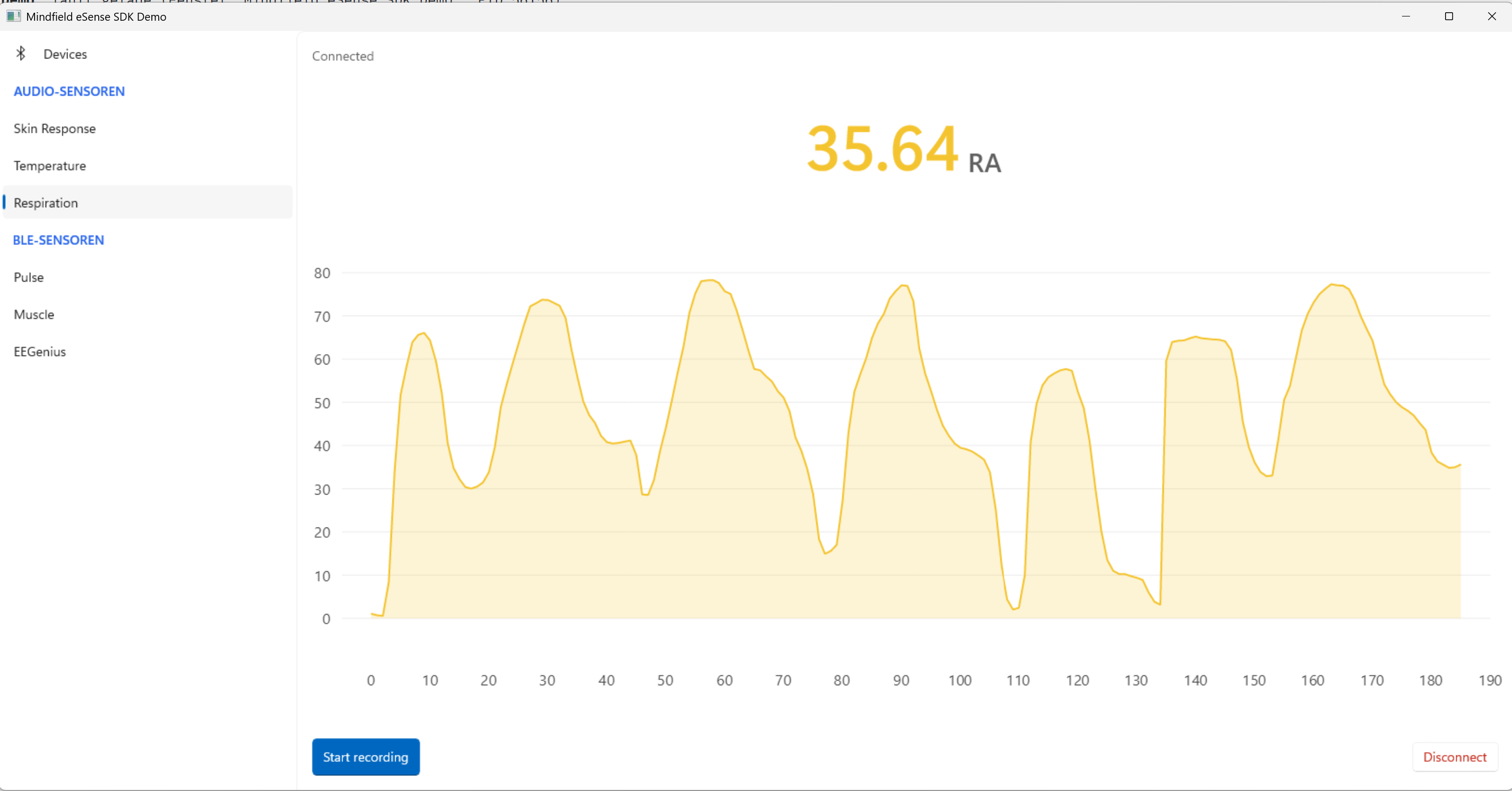

• eSense Respiration — breathing amplitude (RA), audio

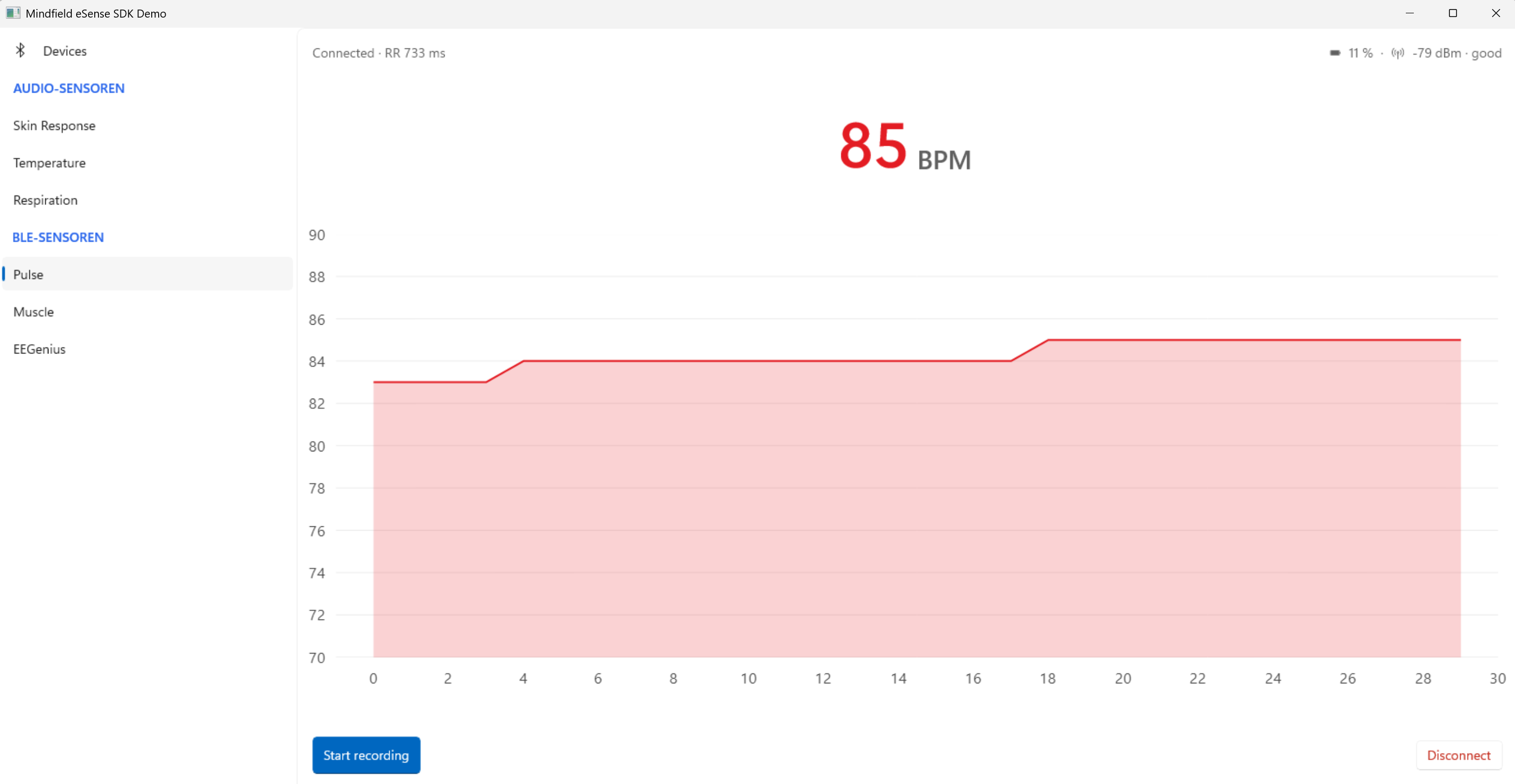

• eSense Pulse — heart rate (BPM) and RR intervals via the standard Bluetooth heart-rate service (HRP)

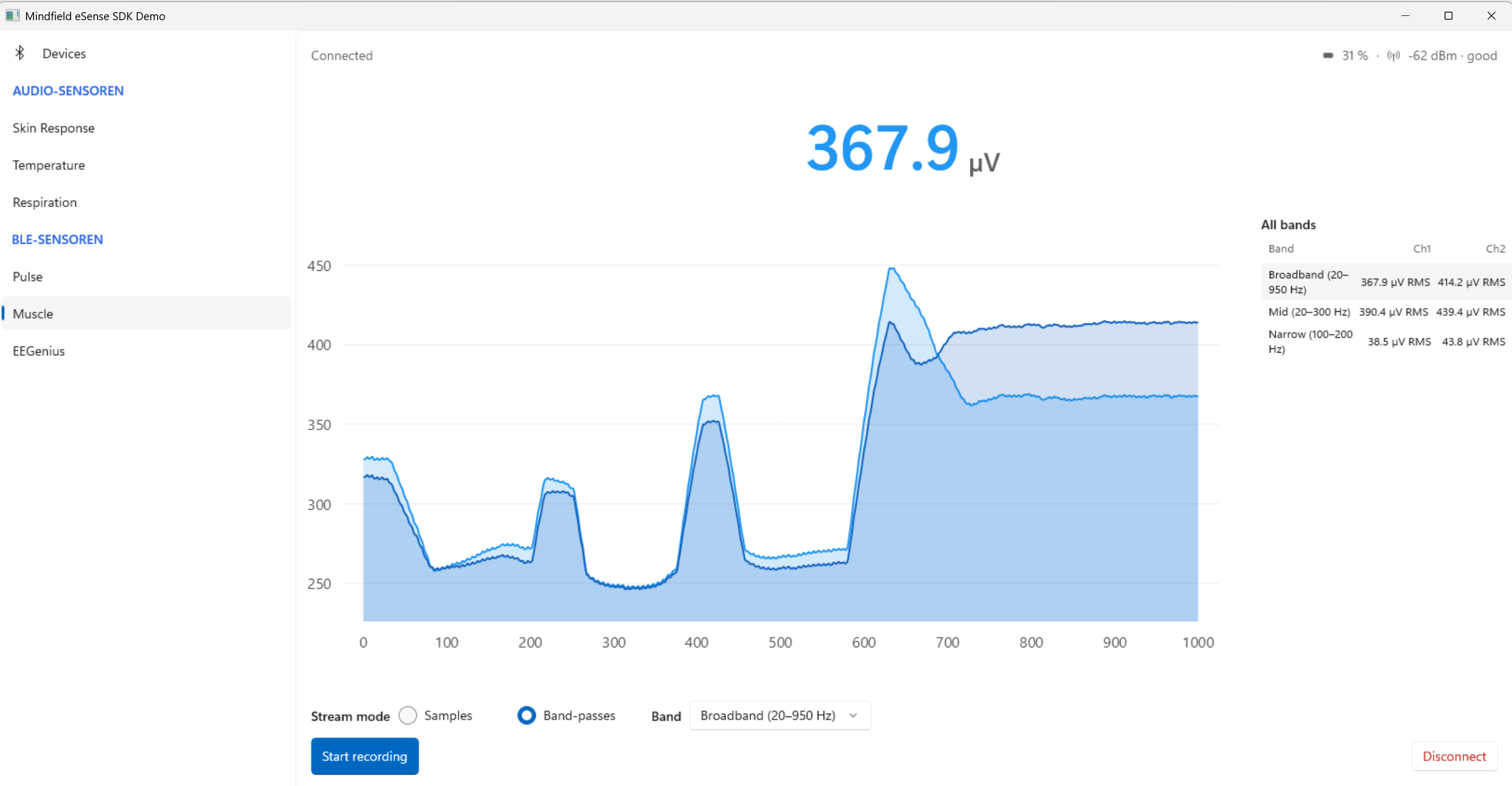

• eSense Muscle — muscle activity (EMG) in microvolts (µV), 2-channel, frequency bands Broadband (20–950 Hz) / Mid (20–300 Hz) / Narrow (100–200 Hz) as µV RMS, via Bluetooth

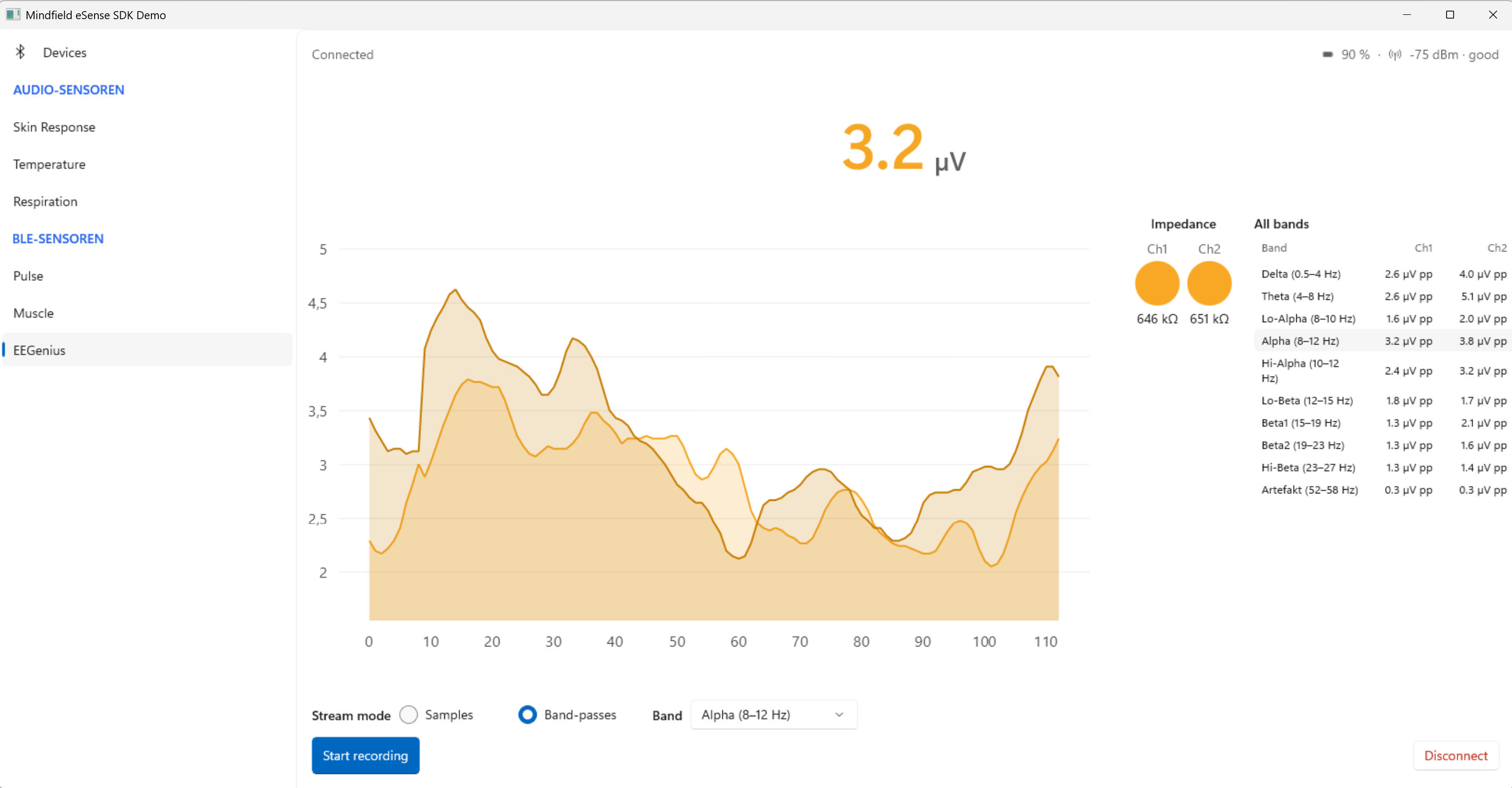

• eSense EEGenius — brain activity (EEG) in microvolts (µV), 2-channel, raw signal 250 Hz/channel; plus 10 frequency bands (transmitted at 20 Hz): Delta (0.5–4 Hz), Theta (4–8 Hz), Lo-Alpha (8–10 Hz), Alpha (8–12 Hz), Hi-Alpha (10–12 Hz), Lo-Beta (12–15 Hz), Beta1 (15–19 Hz), Beta2 (19–23 Hz), Hi-Beta (23–27 Hz) and Artifact (52–58 Hz); plus per-channel impedance display, via Bluetooth

Also included:

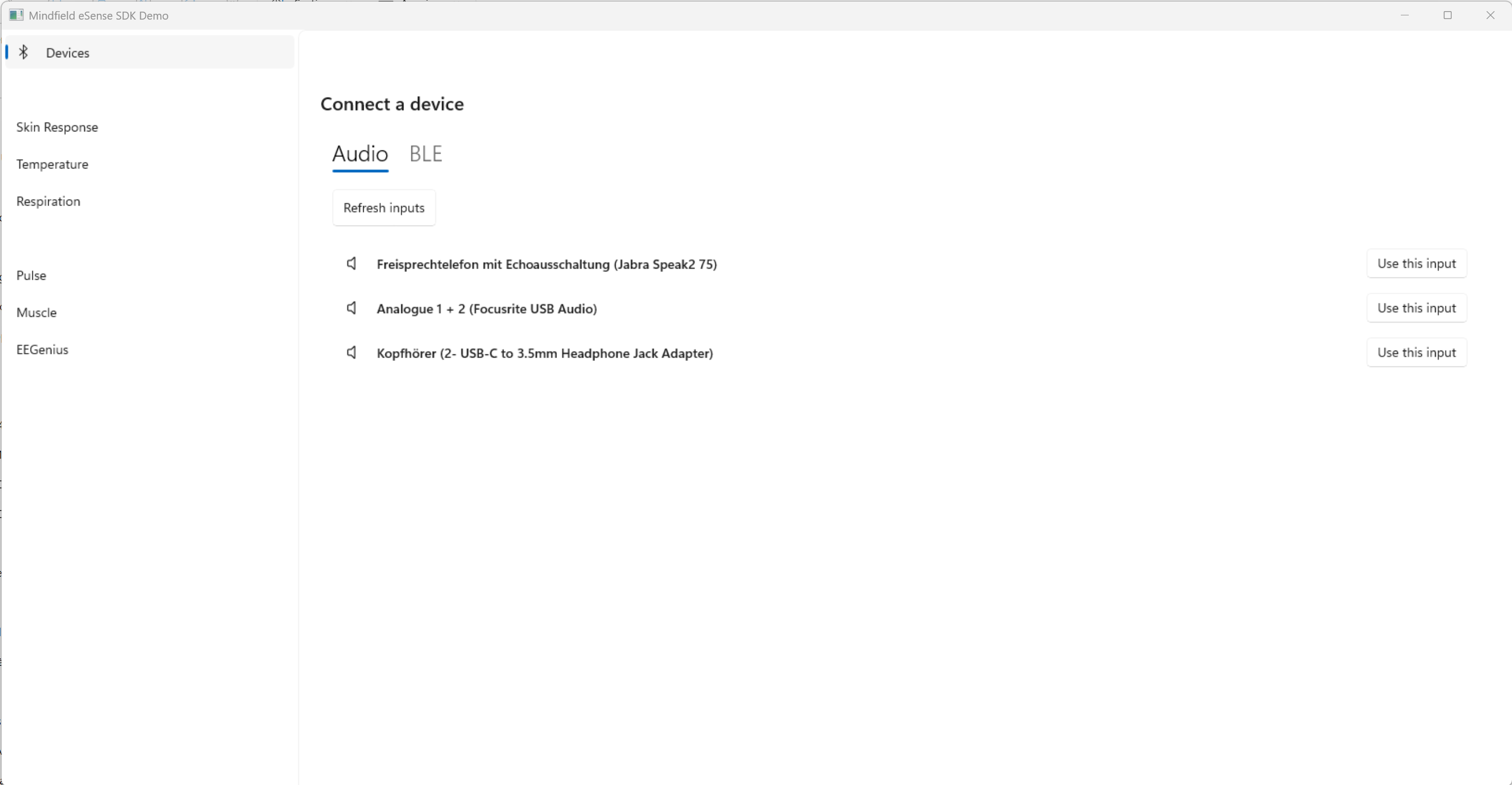

• Fully functional WinUI 3 demo app in source code – with live charts (LiveCharts2), CSV export and a unified device picker for audio and Bluetooth sensors
• API documentation (XML IntelliSense in every NuGet package) and a quick-start guide
• Lifetime updates of the purchased platform version
• Unlimited commercial and non-commercial use, no royalties

Hardware in the set: a USB-C adapter for connecting the eSense audio sensors (Skin Response, Temperature, Respiration) to your Windows PC.

Technical specification

Supported sensors at a glance

The demo app in action – all six sensors live

The included WinUI 3 demo app (source code included) streams every sensor in real time with live charts, signal quality and CSV export. Here it is across the complete eSense family:

Pulse sensor: Bluetooth standard, no custom code needed

The eSense Pulse implements the official Bluetooth SIG standard Heart Rate Service (service UUID 0x180D, Heart Rate Measurement characteristic 0x2A37). You don’t need a vendor-specific SDK – the native Bluetooth APIs of Windows 10/11 are sufficient, provided a BLE chip is present or a BLE dongle is used. Full code examples including a parser for the flags byte (UINT8 vs. UINT16) ship with the demo app.

Quick start (C#, .NET 10)

using var manager = ESenseManager.Create();
await manager.ConnectAsync(SensorType.SkinResponse);
manager.Readings.Subscribe(reading =>
    Console.WriteLine($"EDA: {reading.Value} µS, Quality: {reading.Quality}")
);

Application scenarios on Windows

• Biofeedback practice software — clinic or practice workstation with calibrated sensor streams, session management and reporting
• Neurofeedback application — EEGenius EEG with frequency bands (Delta–Beta) and impedance control for concentration and relaxation training
• EMG rehab & physiotherapy — Muscle sensor (2-channel) for muscle re-education, posture training and progress documentation
• HRV biofeedback & coherence training — Pulse via the Bluetooth standard for heart-rate variability and breathing coherence
• Research tool in the lab — multi-sensor capture of all six sensors simultaneously, CSV/Excel export and stimulus/marker synchronisation
• Coaching & training software — live visualisation and analysis for trainers, local and privacy-friendly
• Integration into existing .NET software — modular NuGet packages plug directly into existing Windows applications
• Trade-show & kiosk demo — standalone Windows app with live charts for demonstrations and showrooms
